03 Example - Repeat Scans

import pyscan as ps
import matplotlib.pyplot as plt
import numpy as np
import random

Setup devices

devices = ps.ItemAttribute()

devices.v1 = ps.TestVoltage() # Device 1
devices.v2 = ps.TestVoltage() # Device 2
devices.v3 = ps.TestVoltage() # Device 3

Define a measure function

def get_voltage_data(expt):
    """
    Reads the voltage from v1, v2 devices and adds a random component. Also adds a calculated value vsum.
    """

    runinfo = expt.runinfo
    devices = expt.devices

    d = ps.ItemAttribute()

    d.v1_readout = devices.v1.voltage + random.gauss(mu=0, sigma=1)
    d.v2_readout = devices.v2.voltage + random.gauss(mu=0, sigma=1)

    d.vsum = d.v1_readout + d.v2_readout

    return d

Experiments

1. 1D Scan with scan0 as RepeatScan, using point data

# Set up the runinfo with scan0 as RepeatScan
runinfo = ps.RunInfo()
runinfo.scan0 = ps.RepeatScan(20, dt=0.01)

runinfo.measure_function = get_voltage_data

expt = ps.Experiment(runinfo, devices)
expt.start_thread()

# 1D Plot using point data
ps.live_plot1D(expt, data_name="v1_readout")

2. 2D Scan with scan1 as RepeatScan, using point data

# Set up the runinfo with scan0 as PropertyScan and scan1 as RepeatScan
runinfo = ps.RunInfo()
runinfo.scan0 = ps.PropertyScan({'v1': ps.drange(0, 1, 10)}, prop='voltage', dt=0.01)
runinfo.scan1 = ps.RepeatScan(10, dt=0.01)

runinfo.measure_function = get_voltage_data

expt = ps.Experiment(runinfo, devices)
expt.start_thread()

# 2D Plot using point data
ps.live_plot2D(expt, data_name="v1_readout")

3. 2D Scan with scan0 as RepeatScan, using point Data

# Set up the runinfo with scan0 as RepeatScan and scan1 as PropertyScan
runinfo = ps.RunInfo()
runinfo.scan0 = ps.RepeatScan(10, dt=0.01)
runinfo.scan1 = ps.PropertyScan({'v1': ps.drange(0, 1, 10)}, prop='voltage', dt=0.01)

runinfo.measure_function = get_voltage_data

expt = ps.Experiment(runinfo, devices)
expt.start_thread()

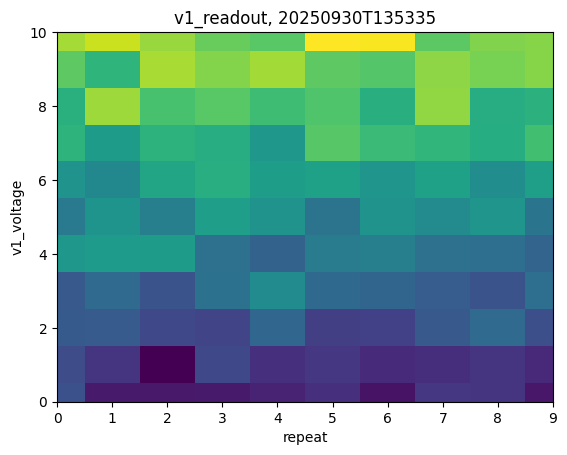

# 2D Plot using point data
try:
    ps.live_plot2D(expt, data_name="v1_readout")
except KeyboardInterrupt:
    expt.stop()
